PINTECH HA-820A High Voltage Amplifier, 400kHz, 800Vp-p, Waveform Generator Voltage Signal Amplifier with Programmable Function and Digital Display

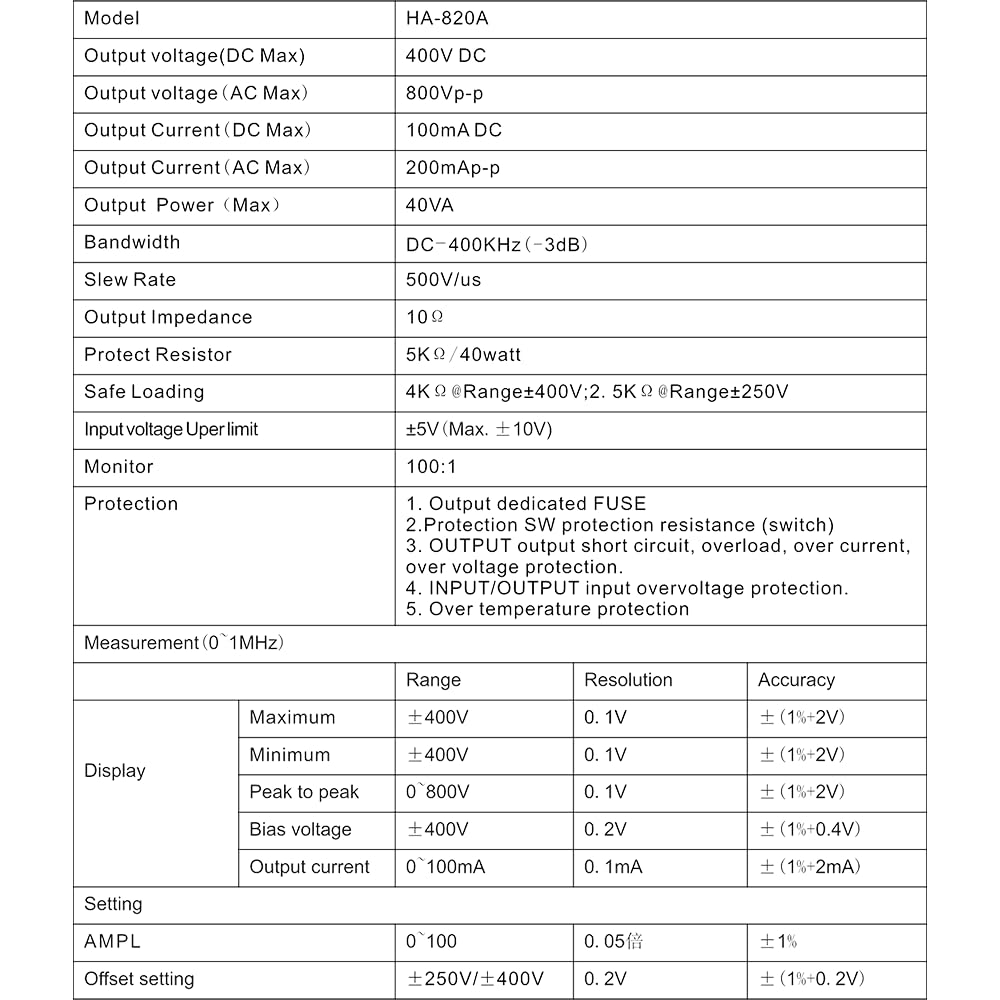

MODEL: HA-820A Max. DC Output Voltage: 400V Max. AC Output Voltage:800Vp-p Max. DC Output Current: 100mA Max. AC Output Current:200mAp-p Max. Output Power: 40 VA Bandwidth:DC-400kHz(-3dB) Slew Rate:500V/μs Output Impedance: 10Ω Resistors for Output Protection: 5kΩ/40watt Input Amplitude: ±5V(Max.±10V) Output Method: Single End Safe Load Value: 4kΩ@Range±400V;2.5kΩ@Range±250V AMPL: 100(Max) OFFSET:±250V/± 400V Monitor: 100:1 Weight: 5.4kg/11.9lb Dimension(LxWxH): 320x260x150 mm Package Included: High Voltage Amplifier x 1, Power Cable x 1, Banana Plug x 1, BNC Cable x 1, Signal Generator Output Line x 1, Alligator Clip Connection Cable x 1

• Output Voltage: Max. 400V DC, 800Vp-p AC.
• Output Current: Max. 100mA DC, 200mAp-p AC.
• The high voltage amplifier has an output protection switch to ensure that the amplifier will not be damaged by external short-circuit or external voltage feedback.
• Updated Version: This voltage amplifier increases the digital display, all kinds of parameters can be displayed intuitively, and also increases the program control function, parameters can be set quickly.
• Widely Use: The signal amplifiers can also be used as an audio signal generator or function waveform generator.
